OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing

Name: OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing
Brand: NVIDIA
Price: 920 USD

China OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing wholesale

Brand Name : NVIDIA

Model Number : Jetson TX2i

Place of Origin : USA

MOQ : 1pcs

Price : USD920-USD950\SET

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100pcs 30work days

Delivery Time : 15-30work days

NAME : OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing

Keyword : OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing

AI Performance : 1.26 TFLOPS

GPU : NVIDIA Pascal™ architecture with 256 NVIDIA CUDA cores

CPU : Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor complex

Memory : 8 GB 128-bit LPDDR4 (ECC Support) 51.2 GB/s

Storage : 32 GB eMMC 5.1

Power : 10W | 20W

Networking : 10/100/1000 BASE-T Ethernet

PCIe : 1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2)

Mechanical : 87 mm x 50 mm 400-pin connector

Contact Now

OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing

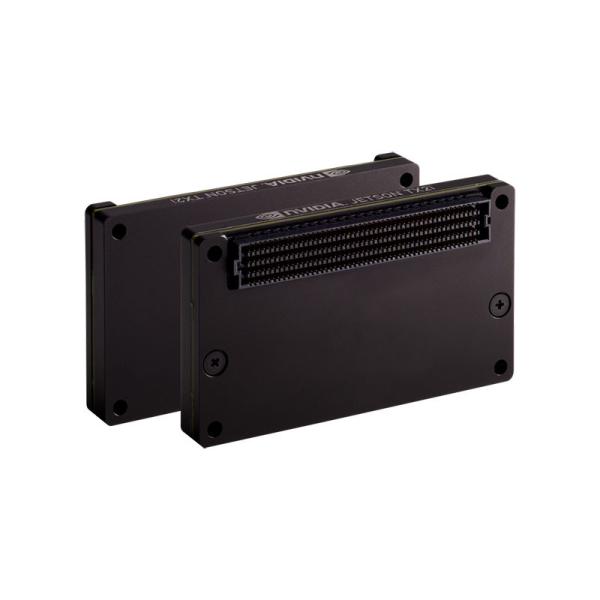

NVIDIA Jetson TX2i Module

Extend AI Computing with the Jetson TX2i

NVIDIA Jetson TX2i module’s rugged design, small form factor, and reduced power envelope make it ideal for high-performance edge computing devices such as industrial robots, machine vision cameras, and portable medical equipment.

More efficient work, more convenient life, more healthy body

From edge computing application to cloud computing application, Plink-Ai provides one-stop hardware solution, making machines more intelligent, work more standardized, and medical care simpler.

PLINK can solve all the problems of data collection and transmission, customers can focus on solving the application problems

OEM 8 GB AI Nvidia Jetson TX2 TX2i Developer Kit Edge Computing

Jetson TX2i Module

NVIDIA Pascal™ architecture with 256 NVIDIA CUDA cores, 1.3 TFLOPS (FP16)

Dual-core Denver 2 64-bit CPU and quad-core ARM A57 Complex

8GB 128-bit LPDDR4 (ECC support), 1600MHz - 51.2 GB/s

32GB eMMC 5.1

Operating temperature	-40C - 85C
Storage temperature	-40C - 85C
Humidity	95%RH, -10C to 65C (non-condensing)
Vibration	5 G RMS 10 to 500 Hz (random/sinusoidal)
Shock	140 G, half sine 2 ms duration
Voltage input	9V - 19.6V DC
Module power	10W - 20W

NVIDIA Jetson TX2 Industrial Module Technical Specifications

AI Performance	1.26 TFLOPS
GPU	NVIDIA Pascal™ Architecture GPU with 256 CUDA cores
CPU	Dual-core NVIDIA Denver 2 64-bit CPU and quad-core ARM A57 Complex
Memory	8 GB 128-bit LPDDR4 (ECC Support) 51.2GB/s
Storage	32 GB eMMC 5.1
PCIe	1 x1 + 1 x4 OR 1 x1 + 1 x1 + 1 x2 (PCIe Gen2)
Power	10W \| 20W
CSI Camera	Up to 6 cameras (12 via virtual channels) 12 lanes MIPI CSI-2 D-PHY 1.2 (up to 30 Gbps)
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.0 2 x4 DSI (1.5Gbps/lane)
Networking	10/100/1000 BASE-T Ethernet
Video Encode	1x 4K60 (H.265) 3x 4K30 (H.265) 4x 1080p60 (H.265)
Video Decode	2x 4K60 (H.265) 7x 1080p60 (H.265) 14x 1080p30 (H.265)
Mechanical	87 mm x 50 mm 400-pin connector
